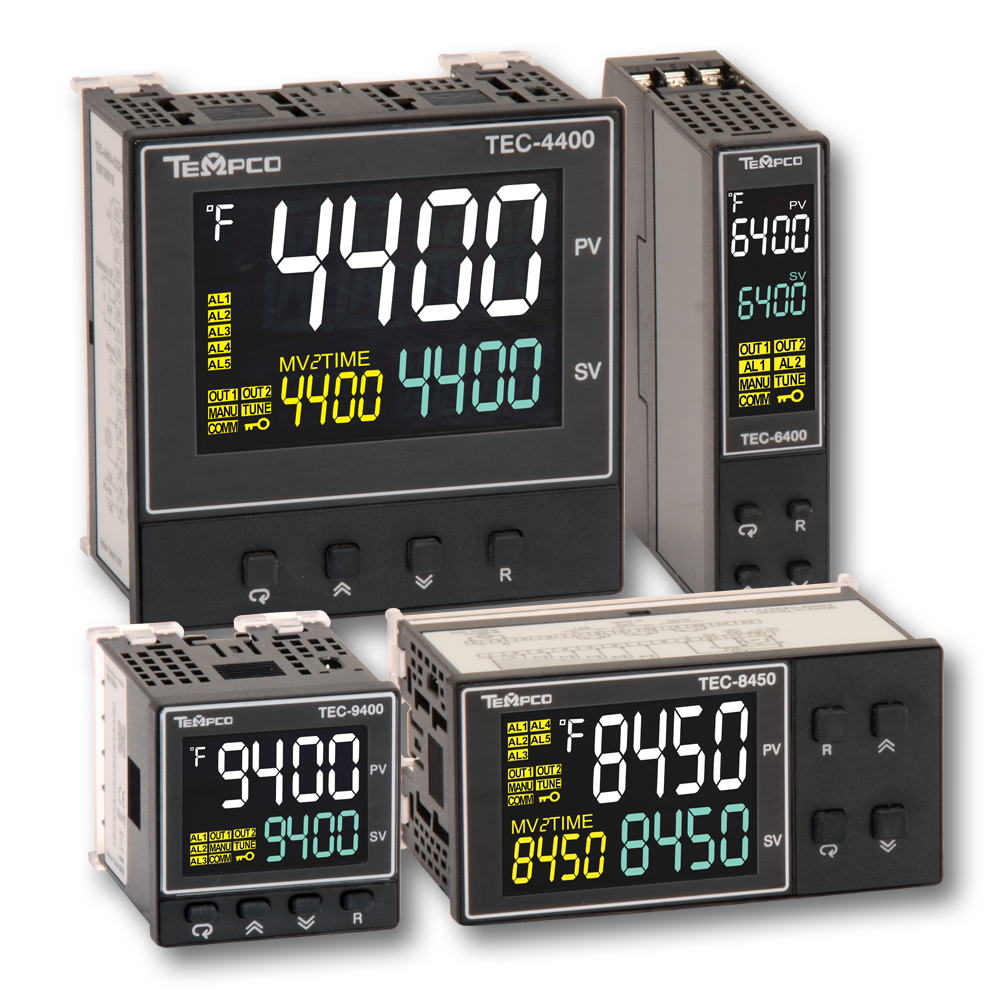

Temperature Controllers
TEC, TKZ and TBC Controllers and their accessories are used in a wide variety of machinery to maintain process temperatures.
Common Applications
- Analytical Equipment
- Batch Ovens
- Chemical Processing
- Commercial Cooking/Warming
- Continuous Ovens
- Defrost Equipment
Product Lines

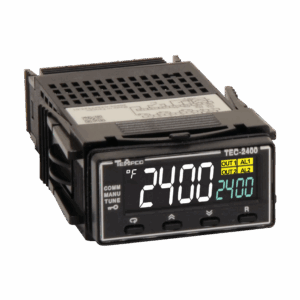

Model TEC-2400 Temperature Controller
TEC-2400
- LCD Display – Using NFPA/IEC Standard Colors
- 3 Programmable Outputs
- Heater Break Alarm
- 1/32 DIN

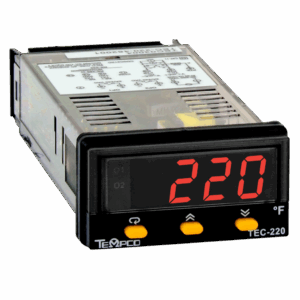

Model TEC-220 Temperature Controller
TEC-220
- NEMA 4X Front
- 3 Programmable Outputs
- 1/32 DIN

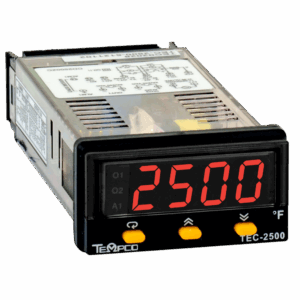

Model TEC-2500 Temperature Controller
TEC-2500
- NEMA 4X Front
- 4 Programmable Outputs
- Heater Break Alarm
- 1/32 DIN

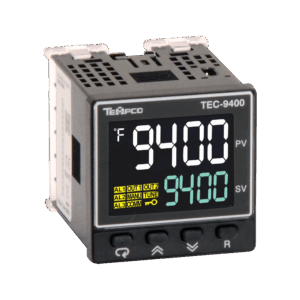

Model TEC-9400 Temperature Controller
TEC-9400
- LCD Display – Using NFPA/IEC Standard Colors
- 3 Programmable Outputs
- Heater Break Alarm
- 1/16 DIN
Model TEC-910 Temperature Controller
TEC-910
- High Limit Control
- External Reset Optional
- Retransmission Optional
- Latching Relay
- 1/16 DIN

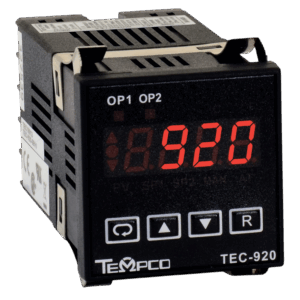

Model TEC-920 Temperature Controller
TEC-920
- Low Cost
- Single Display
- 2 Programmable Outputs
- 1/16 DIN

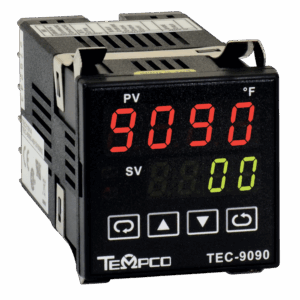

Model TEC-9090 Temperature Controller
TEC-9090
- 2 Programmable Outputs
- Dual Display
- 1/16 DIN

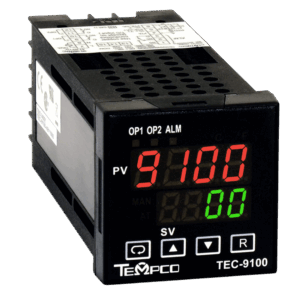

Model TEC-9100 Temperature Controller
TEC-9100
- 4 Programmable Outputs
- Dual Display
- Cutting Edge Technology
- 1/16 DIN

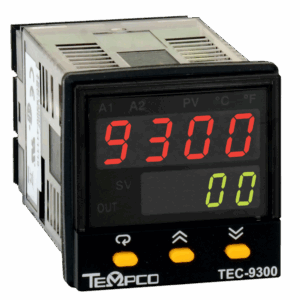

Model TEC-9300 Temperature Controller
TEC-9300
- 4 Programmable Outputs
- Heater Break Alarm
- NEMA 4X Front
- 1/16 DIN

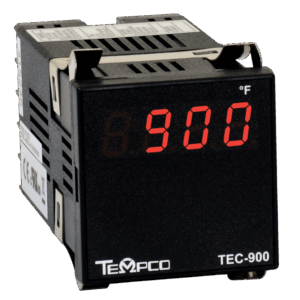

Model TEC-900 Temperature Controller
TEC-900
- Display Only
- T/C or RTD Inputs
- High or Low Voltage Operation
- 1/16 DIN

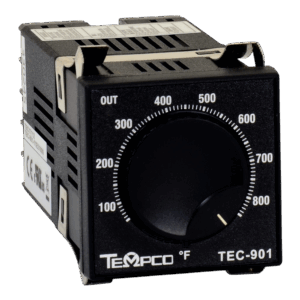

Model TEC-901 Temperature Controller
TEC-901
- Non-Indicating
- Potentiometer Setpoint
- 1/16 DIN
- Replaces TEC-902

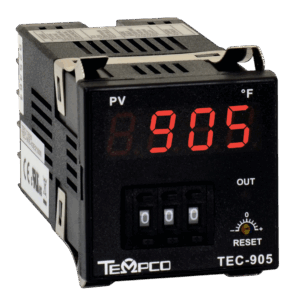

Model TEC-905 Temperature Controller
TEC-905
- Pushwheel Setpoint
- Process Digital Display
- 1/16 DIN

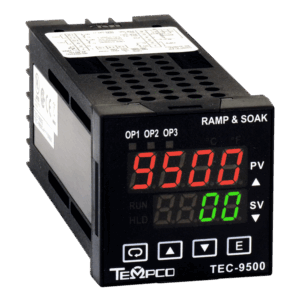

Model TEC-9500 Temperature Controller
TEC-9500
- 9 Recipes
- 16, 32 or 64 Segments per Recipe
- 1/16 DIN

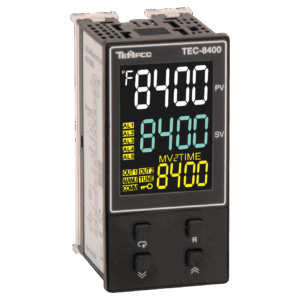

Model TEC-8400 Temperature Controller
TEC-8400
- LCD Display – Using NFPA/IEC Standard Colors
- 2 Programmable Outputs, 3 Alarms
- Ramp & Soak
- Heater Break Alarm
- 1/8 DIN

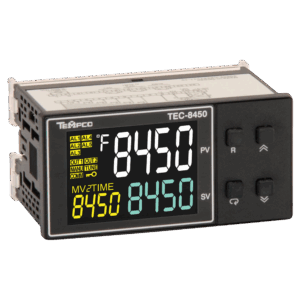

Model TEC-8450 Temperature Controller
TEC-8450
- LCD Display – Using NFPA/IEC Standard Colors
- 2 Programmable Outputs, 3 Alarms
- Ramp & Soak
- Heater Break Alarm
- 1/8 DIN, Horizontal Orientation

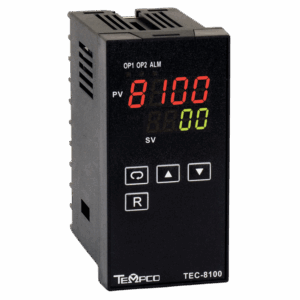

Model TEC-8100 Temperature Controller
TEC-8100
- 4 Programmable Outputs
- NEMA 4X Front Optional
- Cutting Edge Technology
- 1/8 DIN

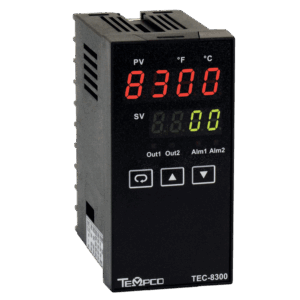

Model TEC-8300 Temperature Controller
TEC-8300
- 5 Programmable Outputs
- Heater Break Alarm
- Differential Control
- Loop Break Alarm
- Analog Input
- Event Input
- Retransmission Output
- 1/8 DIN

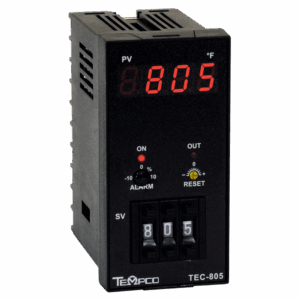

Model TEC-805 Temperature Controller
TEC-805
- Primary Output
- Deviation Alarm Optional
- Multiple Ranges Available
- Process Digital Display
- Pushwheel Setpoint
- 1/8 DIN

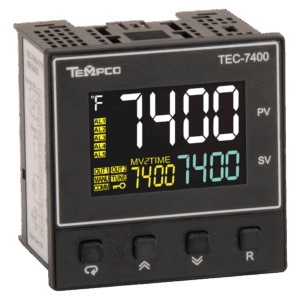

Model TEC-7400 Temperature Controller
TEC-7400
- LCD Display – Using NFPA/IEC Standard Colors
- 2 Programmable Outputs, 1 Alarm
- Ramp & Soak
- Heater Break Alarm
- 3/16 DIN

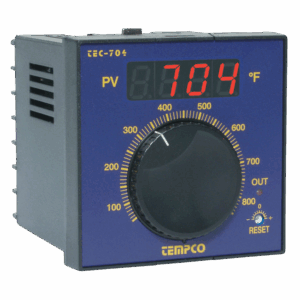

Model TEC-704 Temperature Controller
TEC-704
- Process Digital Display
- Potentiometer Setpoint
- 3/16 DIN

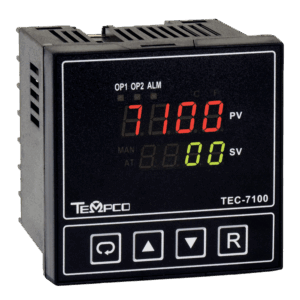

Model TEC-7100 Temperature Controller
TEC-7100
- 4 Programmable Outputs
- Compact Size
- 3/16 DIN

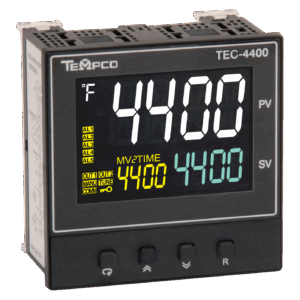

Model TEC-4400 Temperature Controller
TEC-4400
- LCD Display – Using NFPA/IEC Standard Colors
- 2 Programmable Outputs, 3 Alarms
- Ramp & Soak
- Heater Break Alarm
- 1/4 DIN

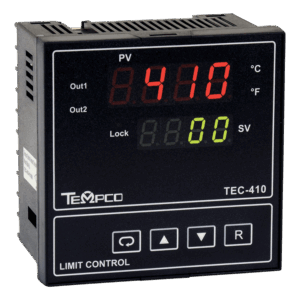

Model TEC-410 Temperature Controller
TEC-410
- High Limit Control
- External Reset Standard
- Retransmission Optional
- Latching Relay
- 1/4 DIN

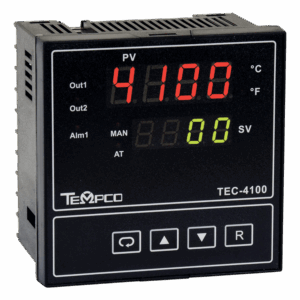

Model TEC-4100 Temperature Controller
TEC-4100
- 4 Programmable Outputs
- NEMA 4X Front Optional
- Retransmission Output
- 1/4 DIN

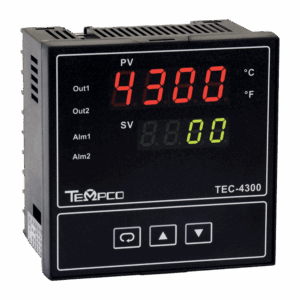

Model TEC-4300 Temperature Controller
TEC-4300
- 5 Programmable Outputs
- Heater Break Alarm
- Differential Control
- Loop Break Alarm
- Analog Input
- Event Input
- Retransmission Output
- 1/4 DIN

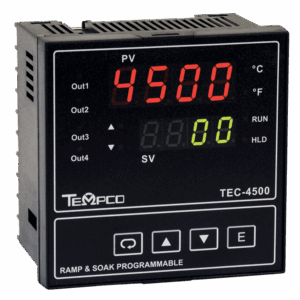

Model TEC-4500 Temperature Controller
TEC-4500
- 9 Recipes
- 16, 32 or 64 Segments per Recipe
- 1/4 DIN

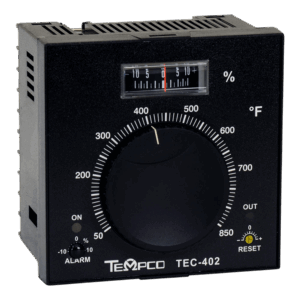

Model TEC-402 Temperature Controller
TEC-402
- Process Deviation Meter
- Potentiometer Setpoint
- Low Cost
- 1/4 DIN
- Replaces TEC-401

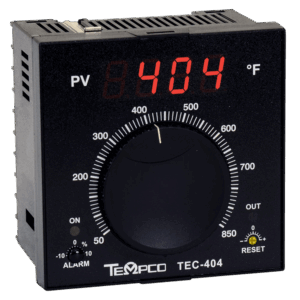

Model TEC-404 Temperature Controller
TEC-404
- Potentiometer Setpoint
- Process Digital Display
- Deviation Alarm Optional
- 1/4 DIN

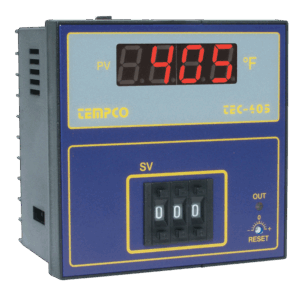

Model TEC-405 Temperature Controller
TEC-405
- Pushwheel Setpoint
- Process Digital Display
- Deviation Alarm Optional
- 1/4 DIN

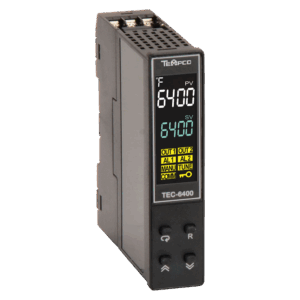

Model TEC-6400 Temperature Controller
TEC-6400
- LCD Display – Using NFPA/IEC Standard Colors
- 3 Programmable Outputs
- Heater Break Alarm
- DIN Rail Mount

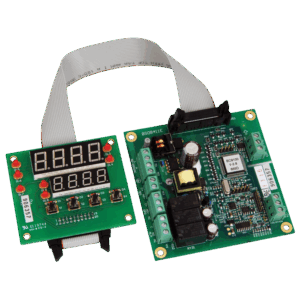

Model TBC-41 Temperature Controller
TBC-41
- 4 Programmable Outputs
- Board Control Fuzzy Logic PID

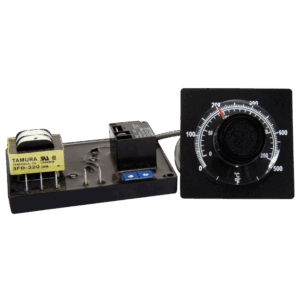

TKZ Encapsulated Temperature Controller
Tempco’s Series TKZ temperature controllers’ small size and low cost make them ideal for OEM applications or thermostat replacement requiring the accuracy, reliability and versatility only available in an electronic control. The control incorporates highly reliable state-of-the-art analog electronic circuitry in a very economical open board, potted design.

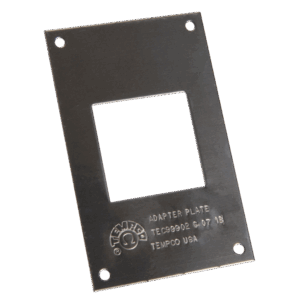

Adaptor Plates
Accessory for Temperature Controllers: 18 gauge Stainless Steel Adapter Plates with (4) #8 self-tapping sheet metal screws for mounting TEC99901: Adapts a 1/4 DIN cut-out to a 1/16 DIN cut-out. TEC99902: Adapts a 1/8 DIN cut-out to a 1/16 DIN cut-out.

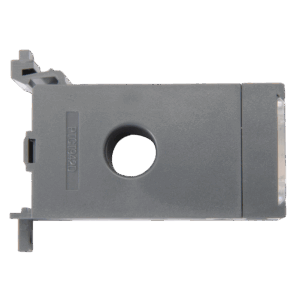

Current Transformer
Accessory for Temperature Controllers: Current Transformer: Transducer use with Heater Break Alarm Design Features
- High Accuracy: ± 2% of Reading ± 0.2A
- Wide Measuring Range: 0 – 50 Amps AC
- DC Voltage Output: 0 – 5 VDC
- 35 mm DIN Rail Mount or Surface Mount
- 7/16″ (12.5mm) diameter maximum cable size

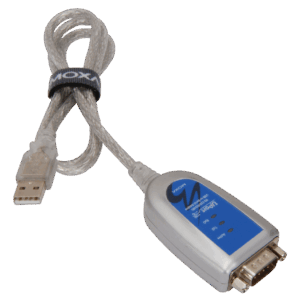

Data Converter
Converter Connects Devices To PC Via USB Port Ideal for interfacing with TEC controllers, PPR chart recorders, PLCs, and general protocol conversion to a USB port

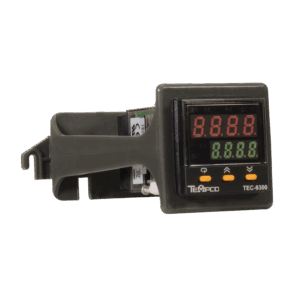

DIN Rail/Surface Mount Adapter
Accessory for Temperature Controllers: DIN Rail/Surface Mount Adapter for 1/16 DIN Controls Cutout for Control – 45 mm/1.772″ square Maximum DIN Control Depth – 120 mm/4.72″ Material – Fire Retardant Polycarbonate GE Lexan® 940

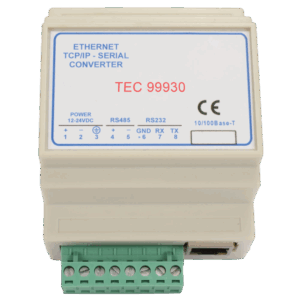

Ethernet Converter
Tempco Ethernet converter / Gateway is capable of linking any serial (RS-232 or RS485) devices to your computer network via Ethernet for remote access, control, and/or monitoring purposes. Works with Tempco electronics (controllers, data loggers, etc.) using our Data Acquisition Software (Part Number TEC99923).

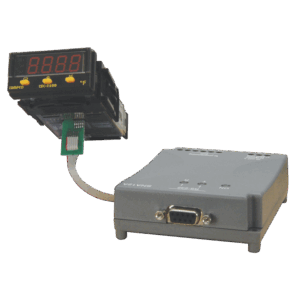

Programming Port Cables
Accessory for Temperature Controllers: Data Communication Accessories: Programming Port Cables Programming Port Cables are used to connect TEC Controllers to Network Adapters.
Smart Network Adapters
Accessory for Temperature Controllers: Data Communication Accessories: Smart Network Adapters Network Adapters allow an interface between the controller programming port and a PC. (Requires a Programming Port Cable.)
TEC Controller Configuration Software
Accessory for Temperature Controllers: Data Communication Accessories: Software “Tempco Config Set” PC software for programming TEC Controllers; used with TEC99003 Smart Network Adapter.

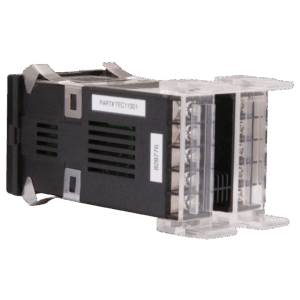

Terminal Covers
Accessory for Temperature Controllers: Polycarbonate Touchsafe Terminal Covers for rear wire terminals on TEC controllers.
