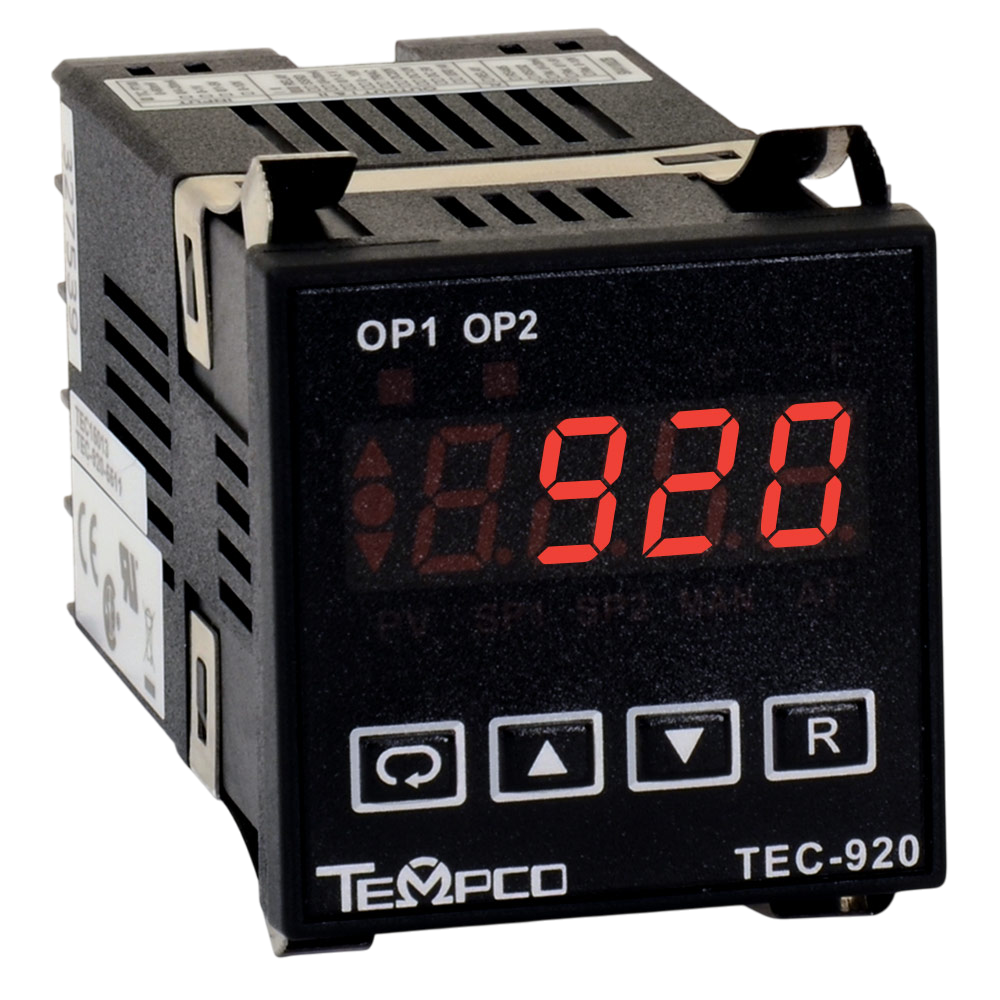

Model TEC-920 Temperature Controller
TEC-920 Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Fuzzy logic PID Autotune heat and cool control
- Short panel depth – only 3-3/8″ (86 mm) required
- Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
- Highly versatile – 6 types of inputs available
- Output 2 can be programmed as output or alarm
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Highly accurate universal input with 18 bit analog to digital converter
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- Optional RS-485 communications interface
- Bright 0.40″ (10 mm) LED display
- High performance at a very low price
