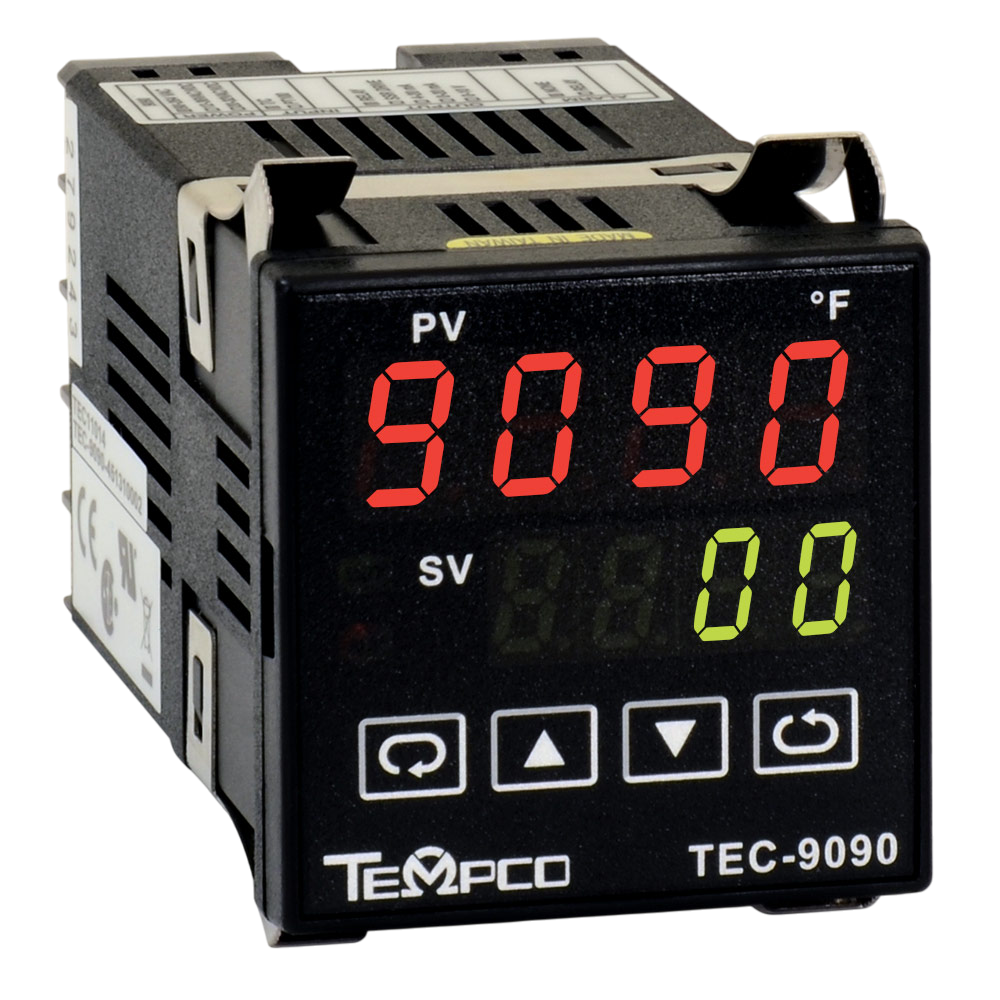

Model TEC-9090 Temperature Controller
TEC-9090 Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Fuzzy logic PID Autotune heat and cool control
- Short panel depth – only 3-7/8″ (86 mm) required
- Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
- Highly versatile – 6 types of inputs available
- Optional relay alarm output
- Universal input power 90-264 VAC or 20-32 VAC/VDC
- Wide variety of alarm mode selections
- Bright 0.40″ (10 mm) red LED process display 0.31″ (8 mm) green LED setpoint
