Electrical Plugs
Plug Types
No options available for this section based on your selections

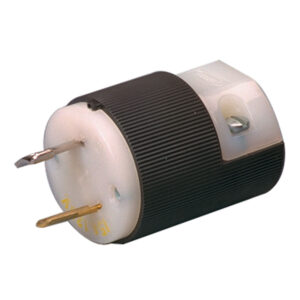

Heavy Duty Quick Disconnect Plugs
Tempco offers 9 Heavy Duty Quick Disconnect Plugs and Matching Connecters. (Connectors are cable mount only.)

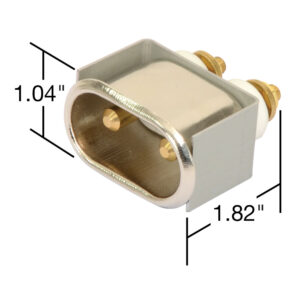

16 Amp Cup Assembly
Electrical Rating: 10 Amp – 250 VDC; 16 Amp – 250VAC
Cutout size: 1.495″ × .790″
Part Number: EHDR-1001 Replace Exposed Terminals Durable Cast Aluminum Body High Temperature Ceramic Insulators Solid Brass Contacts Replace Exposed Lead Wires Temperature Exposure Up to 300°C (572°F) Available on Many Tempco Heater Products
25 Amp Cup Assembly
Electrical Rating: 25 Amp – 400 Volt
Cutout size: 1.495″ × .790″
Part Number: EHDR-1231 Mounting Bracket Included Replace Exposed Terminals Durable Cast Aluminum Body High Temperature Ceramic Insulators Solid Brass Contacts Replace Exposed Lead Wires Temperature Exposure Up to 300°C (572°F) Available on Many Tempco Heater Products

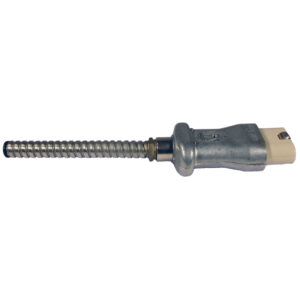

Prewired Plug
Plugs can be prewired and fitted with armor cable or wire braid leads. Consult Tempco with your requirements. Part Number: assigned when ordered Replace Exposed Terminals Durable Cast Aluminum Body High Temperature Ceramic Insulators Solid Brass Contacts Replace Exposed Lead Wires Temperature Exposure Up to 300°C (572°F) Available on Many Tempco Heater Products

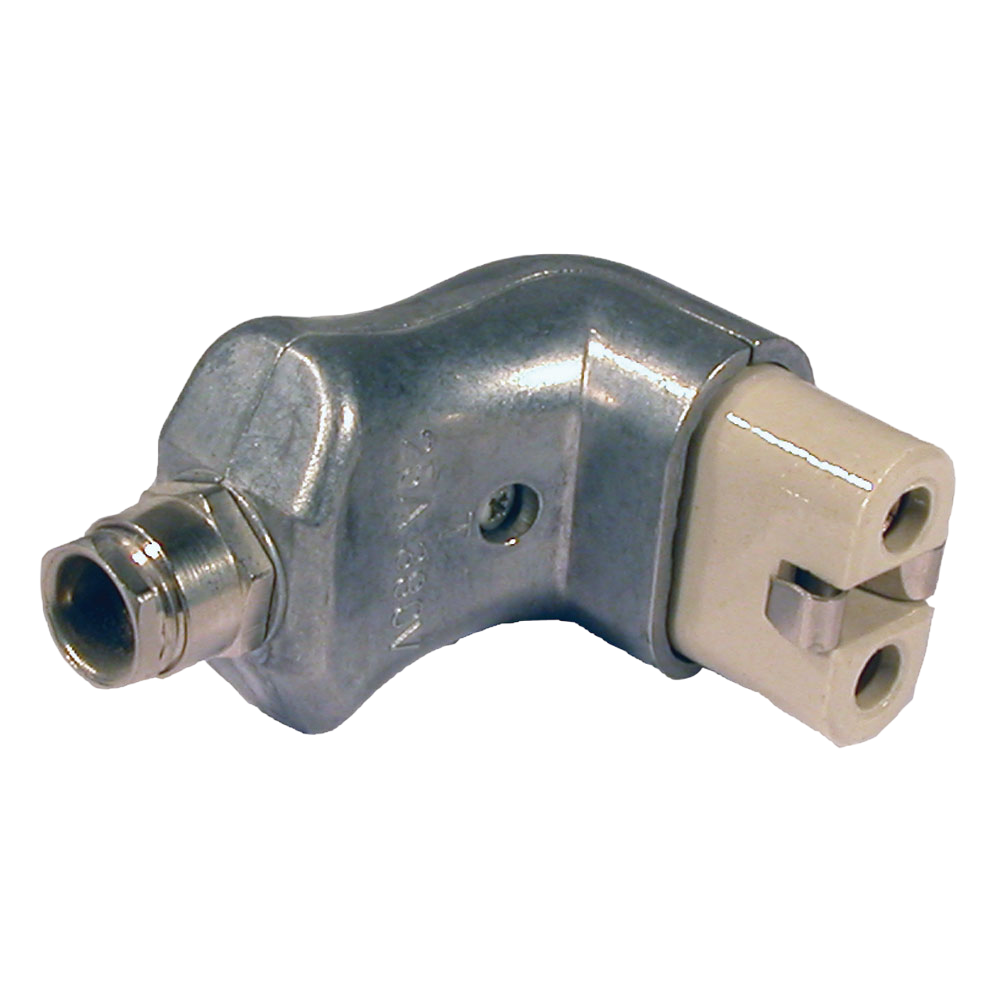

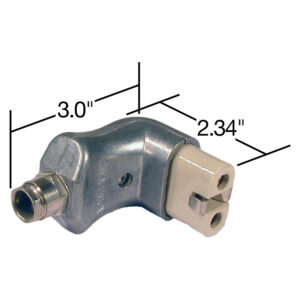

Right Angle Electrical Plug
Electrical Rating: 25 Amp, 380 Volt
Part Number: EHD-101-103 Replace Exposed Terminals Durable Cast Aluminum Body High Temperature Ceramic Insulators Solid Brass Contacts Replace Exposed Lead Wires Temperature Exposure Up to 300°C (572°F) Available on Many Tempco Heater Products

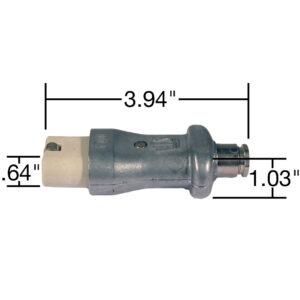

Straight Electrical Plug
Electrical Rating: 25 Amp, 380 Volt
Part Number: EHD-101-102 Replace Exposed Terminals Durable Cast Aluminum Body High Temperature Ceramic Insulators Solid Brass Contacts Replace Exposed Lead Wires Temperature Exposure Up to 300°C (572°F) Available on Many Tempco Heater Products
